China 4-Axis & 5-Axis CNC Machining

Richconn’s 4 & 5 axis cnc machining services are ideal for prototypes and low-volume production because we are responsive and we happily accept small batch orders.

Certifications : ISO 9001:2015 | AS9100D | ITAR Registered

Our 5-axis CNC machining achieves tolerances as tight as ±0.002mm

5-axis machining reduces production time by up to 30%

We deliver top-quality finishes with surface roughness as low as 0.4µm

Utilizing advanced inspection tools such as the CMM, our defect rate is less than 0.01%

Precision 4-Axis & 5-Axis CNC Machining Services

Richconn Advantages of 4-axis CNC Machining Supplier

Increased Productivity: 4-axis CNC machining allows for the processing of several sides of a part without repositioning, which streamlines workflow and increases throughput.
Cost-Effectiveness: For parts that do not require the full capabilities of a 5-axis machine, 4-axis machining offers a more cost-effective solution while still providing superior precision and efficiency compared to 3-axis machining.
Versatility: 4-axis CNC machines are versatile in handling cylindrical or oddly shaped parts, making them ideal for creating fixtures, gears, and more intricate automotive components.
Enhanced Capabilities: Adding a rotary axis to traditional 3-axis milling enables Richconn to tackle more complex parts and prototypes, bridging the gap between 3-axis limitations and 5-axis complexity.
Simplified Workholding: The additional axis reduces the complexity of workholding, as parts can be rotated and machined on different sides without manual intervention. This reduces setup time and improves part accuracy.

Richconn Advantages of 5-axis CNC machining Supplier

Complex Geometries: 5-axis CNC machining allows Richconn to produce highly complex parts with intricate designs that are impossible with 3-axis machines. This capability is ideal for aerospace, automotive, and medical industries where multi-faceted components are required.
Reduced Setup Time: The ability to machine a part from almost any direction in a single setup reduces the need for multiple setups. This not only saves time but also reduces the potential for errors between operations, ensuring higher accuracy and consistency.
Improved Tool Life: 5-axis machines allow the cutting tool to remain perpendicular to the cutting surface, which minimizes tool wear and extends the tool’s life. This is particularly beneficial for hard-to-machine materials, leading to cost savings on tools.
Faster Material Removal: The increased agility of 5-axis machining enables faster removal of material, which can significantly reduce production times. This efficiency is key for meeting tight production schedules in high-demand industries.
Superior Surface Finish: The enhanced control over tool angles and position provides a better surface finish, often eliminating the need for additional surface finishing processes. This improves the aesthetics and functionality of the parts produced.

Richconn 4/5 Axis CNC Machining Capabilities

4-Axis CNC Milling Capabilities

Parameter	Metals	Plastics
Max. Part Size (L x W x H)	2100 x 1800 x 500 mm 82.6 x 70.8 x 19.7 in	2100 x 1800 x 500 mm 82.6 x 70.8 x 19.7 in
Min. Feature Size	Ø 0.2 mm Ø 0.008 in	Ø 0.2 mm Ø 0.008 in
Typical Tolerances	±0.01 mm ±0.0004 in	±0.03 mm ±0.0012 in
Surface Finish	Ra 0.8 µm Ra 32 µin	Ra 1.2 µm Ra 47.5 µin
Max. Cutting Feed Rate	30,000 mm/min 1180 in/min	54,000 mm/min 2126 in/min
Spindle Speed	Up to 20,000 RPM	Up to 20,000 RPM
Tool Change Time	3.3 s	2.2 s

5-Axis CNC Milling Capabilities

Parameter	Metals	Plastics
Max. Part Size (L x W x H)	1385 x 1200 x 900 mm 54.53 x 47.24 x 35.43 in	1385 x 1200 x 900 mm 54.53 x 47.24 x 35.43 in
Min. Feature Size	Ø 0.1 mm Ø 0.04 in	Ø 0.1 mm Ø 0.04 in
Typical Tolerances	±0.01 mm ±0.0004 in	±0.03 mm ±0.0012 in
Surface Finish	Ra 0.8 µm Ra 32 µin	Ra 1.2 µm Ra 47.5 µin
Max. Cutting Feed Rate	50,000 mm/min 1968 in/min	50,000 mm/min 1968 in/min
Spindle Speed	Up to 20,000 RPM	Up to 20,000 RPM
Tool Change Time	0.9 s	0.9 s

Why Choose Richconn as Your 5 axis CNC Machining Manufacturer

As a leading China 4 &5 axis CNC machining manufacturer, Richconn understand the importance of offering cutting-edge technologies to meet diverse industry needs. Our expertise in CNC axis types enables us to tackle complex projects with ease, ensuring superior dimensional accuracy and intricate detailing. Whether you require 4 axis cnc machining or 5 axis CNC machining services, we have the proficiency and state-of-the-art machinery to bring your designs to life.

At Richconn, we take pride in our commitment to delivering micro CNC 5 axis machining services that exceed expectations. Our team of highly skilled engineers and technicians possess a deep understanding of the intricacies involved in producing miniature components with utmost precision. With our micro CNC 5 axis capabilities, we can accommodate the most intricate designs, providing you with flawless results for your specialized projects.

Choose Richconn for unmatched 5-axis CNC machining services, where we utilize state-of-the-art software and hardware to streamline our operations and minimize waste, saving you money. We pride ourselves on offering competitive prices that make advanced machining accessible without compromising the quality of the end product. Our commitment to excellence is reflected in the rigorous quality control measures employed at every stage of the manufacturing process.

What is 4-Axis & 5-Axis CNC machining?

Edit Content

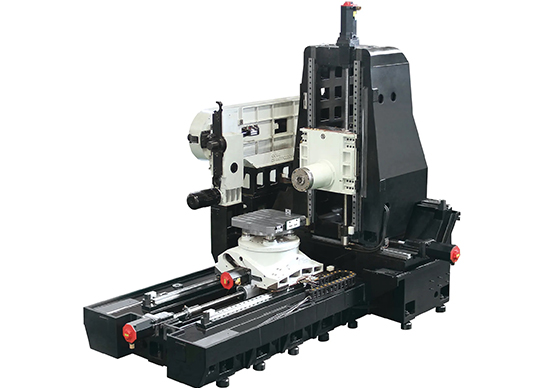

What is 4-Axis CNC Machining？

4-axis CNC machining involves the same operations as 3-axis machining—where a cutting tool moves along the X, Y, and Z linear axes—to remove material and shape a part. However, 4-axis machining adds an additional rotary axis (often referred to as the A-axis) that rotates around the X-axis. This extra degree of freedom allows the workpiece to be rotated, enabling the machining of the sides of a part in a single setup. Here are some key aspects:

Capabilities: 4-axis CNC machines can produce parts that are complex and cylindrical in shape. It can handle work that requires holes or cuts to be made around a cylinder or over contours. The rotary axis movement makes it possible to access several sides of a part without repositioning it manually, which enhances productivity and precision.
Applications: This type of machining is ideal for producing more complex parts like auto parts, camshafts, and various gear parts. It is also used in industries such as aerospace for creating turbine blades or other components that require precise machining on multiple sides.

What is 5-Axis CNC Machining？

5-axis CNC machining includes all the axes of 4-axis machining with an additional rotary axis (B-axis) that rotates around the Y-axis. This configuration allows the cutting tool to move across the X, Y, Z linear axes while also rotating on the A and B axes. This full range of motion enables the tool to approach the workpiece from any direction, which can result in more complex and intricate shapes.

Capabilities: The key advantage of 5-axis machining is its ability to machine highly complex parts from virtually any angle, which reduces the need for multiple setups and offers a significant reduction in machining time. It allows for complex geometries and high precision in parts, with excellent surface finish quality.
Applications: 5-axis CNC machining is extensively used in high-precision industries such as aerospace and aviation for components that require a high level of detail and precision. It’s also crucial in the medical field for creating intricate surgical instruments and implants, as well as in the automotive industry for complex engine parts.

Both 4-axis and 5-axis CNC machining provide significant advancements over 3-axis machining by allowing for more complex and precise cuts with fewer setups. The choice between 4-axis and 5-axis machining will depend on the specific requirements of the part being produced, including the complexity of the design and the material characteristics.

Edit Content

What is The Difference Between China 4 Axis CNC Machining And China 5 Axis CNC Machining？

4 VS 5 axis CNC. Compared with the ordinary CNC machining center (three-axis), the 4-axis machining increases the angular rotation of parts, and the five-axis machining increases the functions of angular rotation of parts and angular rotation of tools (both slow linkage), so that the ordinary CNC machining machine tool has the function of machining more complex parts. The main difference between China 4-axis CNC machining and China 5-axis CNC machining is that the complexity of processing parts is different. The range of five-axis machining is wider than that of 4-axis machining.

At the same time, the 5-axis CNC cost is also higher. Generally, it is more suitable for use in the product sample stage. Five-axis machining includes Aeroengine Blades, shells, automobile, and shipbuilding industries. 5-axis CNC service is usually very suitable for extremely complex and strong parts that must be cast, such as parts with high relative accuracy and parts that cannot be clamped twice. 4-axis machining parts are usually parts that cannot be machined by ordinary three-axis CNC, such as turbine, vortex rod, fan blade, wave wheel, and other curved surface and groove machining.

Edit Content

5 axis Machining Applications:

Complex Surfaces: Five-axis machining excels in producing complex surfaces, such as freeform shapes, curved contours, and multi-sided parts. The additional rotational axes allow the cutting tool to approach the workpiece from various angles, resulting in smooth and precise surface finishes.

Multi-Angle Machining: With five-axis machining, manufacturers can machine parts from multiple angles without repositioning the workpiece. This capability is particularly useful for machining features on different sides of a part or accessing hard-to-reach areas, reducing setup time and improving efficiency.

Aerospace Components: The aerospace industry often requires intricate and lightweight components with complex geometries. 5-axis CNC service enables the production of aerospace parts like turbine blades, engine components, wing sections, and fuselage structures with high precision and accuracy.

Medical Implants and Prosthetics: 5-axis cnc service is extensively used in the medical field to manufacture intricate implants and prosthetics. 5-axis cnc service allows for the precise machining of complex geometries and patient-specific designs, ensuring a perfect fit and optimal functionality.

Tooling and Molds: 5-axis CNC machining is employed in the production of molds, dies, and tooling for various industries. China 5-axis cnc machining enables the creation of complex cavities, undercuts, and intricate features, resulting in high-quality and accurate tooling solutions.

4-axis CNC Machining Applications:

Complex Contours: 4-axis CNC machining is ideal for creating complex contours on parts, such as curved surfaces, sculpted shapes, and intricate profiles. It allows the cutting tool to approach the workpiece from different angles, resulting in precise and intricate geometries.

Undercuts: With the rotational movement provided by the fourth axis, 4-axis machining can easily produce undercuts. Undercuts are features or cavities that cannot be accessed directly by a cutting tool in a straight line. Industries like aerospace and automotive often require undercuts for components like molds, turbine blades, and impellers.

Spiral or Helical Features: 4-axis machining is well-suited for creating spiral or helical features, including threads, screw threads, and grooves. The rotational movement enables the cutting tool to produce these features with precision and accuracy.

Prototyping: The versatility and flexibility of 4-axis CNC machining make it an excellent choice for rapid prototyping. China 4-axis CNC machining allows for the efficient production of prototypes with complex shapes and contours, enabling designers and engineers to test and refine their designs before mass production.
