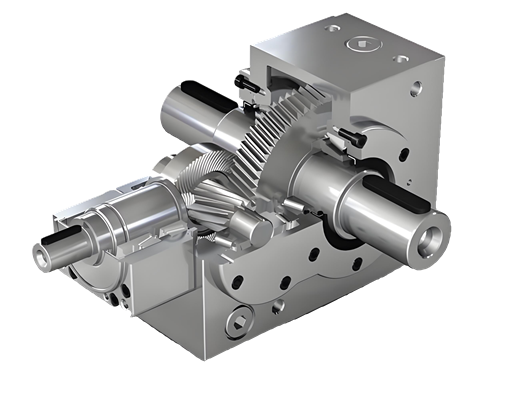

Bevel Gearbox Manufacturer & Supplier

Richconn’s bevel gearboxes offer high efficiency, low backlash, and exceptional precision in gear ratio performance. These gearboxes are designed to operate quietly, handle high shock loads, and offer robust resilience in compact spaces. With a variety of gear ratios and designs, we provide flexibility for diverse applications. Many configurations are available directly from stock, with custom ratios and designs on request.

Technical Data

• Gearbox Sizes: Available in multiple sizes
• Ratios: 1:1, 1.25:1, 1.5:1, 1.75:1, 2:1, 2.5:1, 3:1, 3.5:1, 4:1, 5:1, 6:1
  Additional ratios available upon request
• Maximum Torque: Up to 10,000 Nm
• Maximum Speed: Up to 3,000 RPM, higher speeds available upon request
• Backlash: Standard up to a maximum of 6′-7′, reduced options up to 4′
• Shaft Diameter: Ranging from 9 mm to 90 mm based on gearbox size
• Gear Arrangement: Numerous configurations to suit different applications

Richconn provides tailored bevel gearbox solutions to meet specific client requirements. Our team works closely with customers to design and manufacture gearboxes suited for unique applications, ensuring optimal performance and reliability. With an emphasis on precision engineering, durability, and space efficiency, Richconn’s bevel gearboxes excel in both standard and demanding operational conditions. The ability to customize gear ratios, torque capacities, and configurations offers clients unmatched flexibility, making Richconn the ideal partner for specialized projects.
