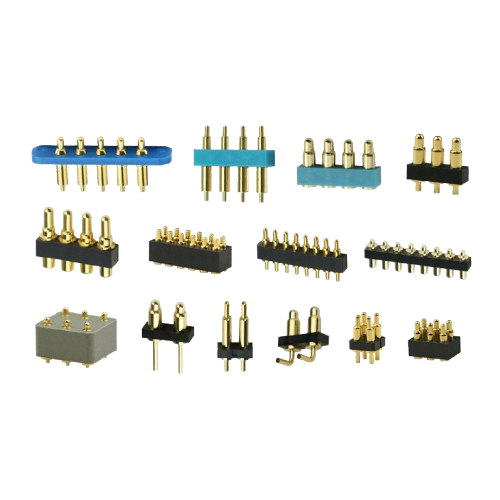

Richconn is a world-leading manufacturer and solution provider of precision pogo pins, providing high-precision connection technology for consumer electronics, automotive electronics, medical equipment, industrial automation and other fields. The company focuses on nano-level CNC processing technology, and its products cover all categories such as micro pogo pins and magnetic pins, with ±0.01mm tolerance control, 1 million cycle life and extreme environment adaptability from -40°C to 125°C. It has passed ISO 9001 and IATF 16949 certifications, ensuring a yield of more than 99.95%; customized design is also provided.
| Parameter | Capability Range | Details |
|---|---|---|
| Material | Brass/CuZn/Stainless Steel | High-quality C5191/C5210 phosphor bronze, SUS303/304 stainless steel |
| Pin Diameter | Ø0.3mm – Ø5.0mm | Precision CNC-machined with ±0.01mm tolerance |
| Plating Options | Au/Ni/AuFlash/SN/Ag | Customizable plating thickness (e.g., Au 0.2-3.0μm) |
| Spring Force | 50gf – 500gf | Adjustable spring compression force for varied applications |
| Current Rating | 1A – 5A | Low resistance (<30mΩ) for stable signal transmission |
| Travel Stroke | 0.5mm – 6.0mm | Precision-controlled stroke with ±0.05mm consistency |
| Insulation Resistance | ≥100MΩ | Tested at 500VDC per EIA-364-21 standard |
| Durability | 10,000 – 1,000,000 cycles | IEC 512-7 compliant cycle life testing |
| Customization | Supported | Tailored shapes (flat/rounded tip), multi-pin arrays, and housing integration |
Showing all 4 results
*If you have any design files that need to be sent, please email them to sales@richconn.com.cn
