Gear Rack Manufacturer & Supplier

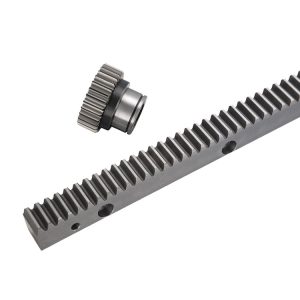

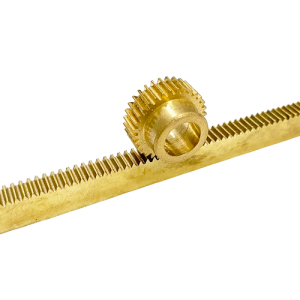

Custom gear racks and pinions from Richconn are made to precisely translate rotational movement into linear motion. A square or round rod with straight teeth cut into one surface is called a gear rack. It works in tandem with a cylindrical gear called a pinion that meshes with the rack. This system, collectively referred to as “rack and pinion,” is a flexible mechanical solution with a wide range of uses.

You can choose from a variety of layouts for our gear racks to find the perfect fit for your setup. Richconn provides gear racks with machined ends for applications that call for longer lengths. This guarantees precise and seamless meshing when numerous racks are arranged in series. To preserve proper alignment and accuracy in our gear racks, we take extra care during the teeth cutting and heat treatment procedures. We do this by using specialized presses and corrective techniques.

Gear Racks Adaptable Uses

Many diverse industrial applications use rack and pinion systems, depending on the kind of movement that is needed. Certain systems—perfect for conveyor systems—have the gear rack stay still while the pinion travels along it. In other systems, this arrangement is ideal for lifting, lowering, and extrusion applications since the pinion rotates stationary while the gear rack moves.

The advantages of rack and pinion mechanisms over ball screws are numerous. They are renowned for their broad operational range, substantial load carrying capability, and straightforward mechanical design. But there’s a chance the system will have some backlash, which is something to keep in mind in high-precision settings. Conversely, gear racks are a preferable option for longer applications since ball screws are limited in length due to deflection, even if they provide higher precision and reduced backlash.

Gear Racks Typical Uses

Common applications for rack and pinion systems include a wide range of mechanical and industrial environments, such as:

Mechanisms for raising and lowering
Systems for horizontal placement and movement
Multiple rotating shafts synchronized
Car steering systems are highly regarded for their lightweight design, high stiffness, responsive handling, and straightforward construction.
Rack and pinions are employed in consumer goods like toys, as well as in gates and doors that require lateral motion, in addition to industrial machinery and steering systems.
